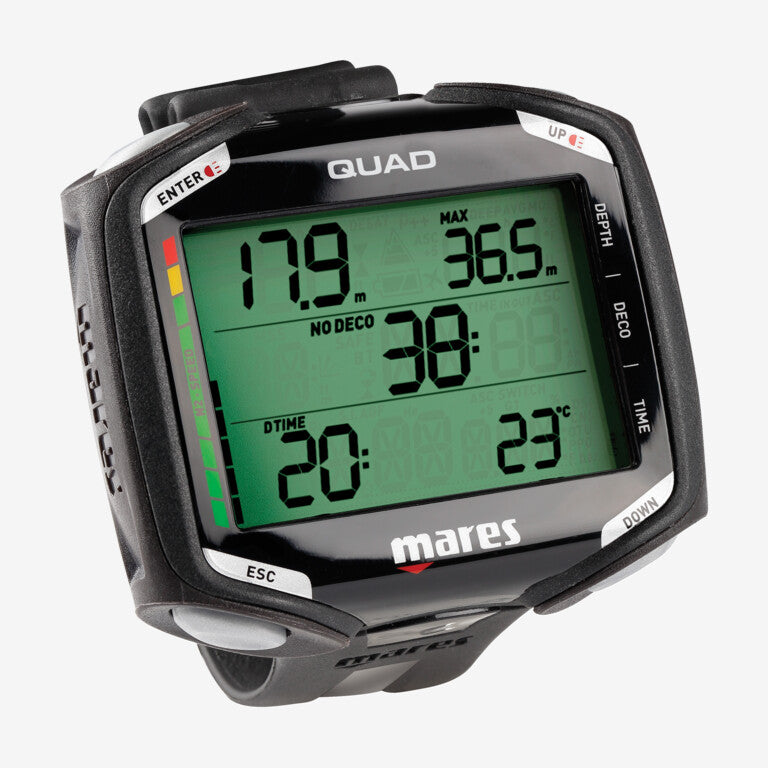

The Quad Scuba Dive Computer features a large, easy-to-read screen with three lines of "Jumbo Size" information, making it even more visible than other dive computers. The four buttons provide intuitive operation and are mirrored during the dive for easy navigation. The top two buttons display depth-related information, while the lower buttons display oxygen-related information, all in a clear and understandable format.
At the end of the dive, the Quad Scuba Dive Computer displays a special "minilog" with alternating information on the maximum depth, average depth, dive time, and gas used, as well as classic data on unsaturation, no-fly, CNS, and surface interval. The fit of the computer has also been improved, with the option of fitting bungees for those who prefer this solution.
The Quad Scuba Dive Computer comes in four colors and includes a new "compact" instruction manual printed in 20 languages, making it easy to use and understand.
The Quad is capable of downloading logbook data, and receiving firmware updates. Through the use of the Mares Dive Organizer Program (PC) and in conjunction with the Dive Link 2 USB interface clip and cable, data can be transferred between the Quad and the Dive Organizer Program.
Alternatively, the Mares Bluelink Pro uses low energy Bluetooth technology to communicate directly with the Mares App, or the MySSI App to download logbook data and firmware updates on your smart devices (Bluelink Pro cannot be used with PC/MAC to transfer data).
*Dive Link 2 and Bluelink Pro accessories sold separately.
The main features of the Quad dive computer are:
• Large and clear data display
• "Runaway Deco Alarm" which alerts the user when staying at the current depth will cause a significant increase in mandatory deco stages
• "Deco Dive Planner" with surface interval input that is adaptable to the user's needs
• Option to view Dive Time including seconds
• Multi-gas capable
• Mirror function of buttons while diving
• Extended battery life that can be replaced by the user (for battery replacement, please contact your local Mares dealer. Refer to the Mares Locator)
• Battery: CR2450
Facts
- MATERIAL:CR2450
- BATTERY DURATION:200-300 dives
- NITROX USE:EAN from 21% to 99%
- MAX DISPLAYED DEPTH:150m / 492ft
- ASCENT RATE INDICATOR (M/MIN - FT/MIN):true
- MEMORY CAPACITY:35hr
- PROFILE SAMPLING RATES:5s
DISPLAY: Segment Display
- GAS SWITCHING :true
- STOPWATCH: true
- WATCH: false
- DUAL TIME: false
- DAILY ALARM: false
- PLAN MODE: true
- CHOICE_MET_IMP: true
- FRESH AND SEAWATER SETTINGS: true
- RESID_NITRO_RESET: true
- OPTION TO EXCLUDE AUDIBLE ALARMS: true
- EXCLUSION OF "UNCONTROLLED ASCENT": true
- ALTITUDE ADJUSTMENT: true
- TEMPERATURE: Measurement range: -10 °C to +50 °C / 14 °F to 122 °F
- LOGBOOK MEMORY:35 hours of dive profile at 5-second sampling rate
- DISPLAY MATERIAL:Mineral glass
- CLOCK:Quartz clock, time, date, dive time display up to 999 minutes
- UPGRADEABLE SOFTWARE:true
- AIR INTEGRATED:false
- GRAPHIC AND NUMERIC
TANK PRESSURE:false
- USB CHARGER:false
